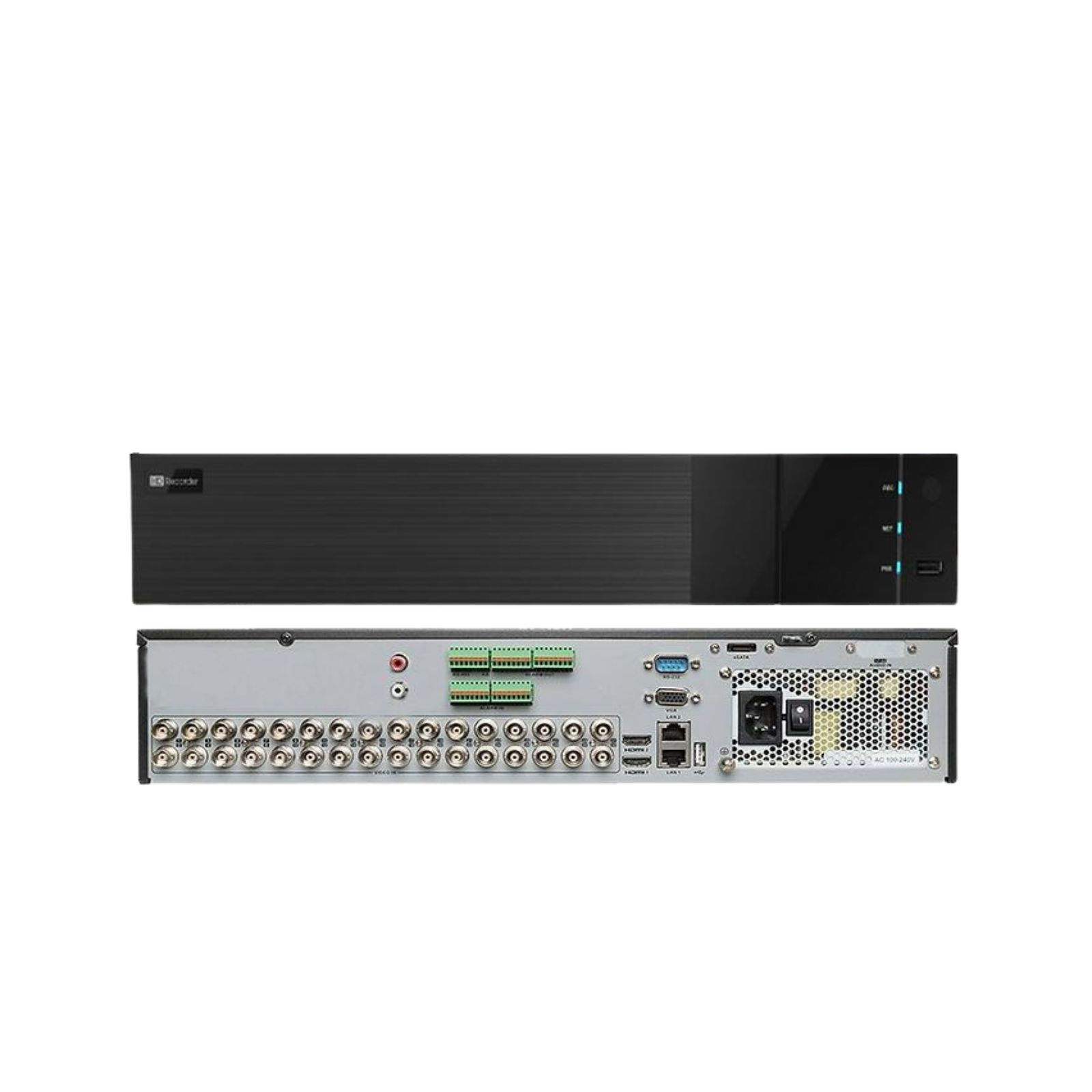

Titanium ED-8432H5-D2 32CH UPTO 5MP Lite TVI/CVI/AHD High Definition DVR / H.265
This listing includes:
- (1) HARD DRIVE OPTION: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
- (1) DIGITAL VIDEO RECORDER: ED8432H5-D2
ED8432H5-D2 view data sheet
32CH Titanium 5MP Lite TVI/AHD/CVI High Definition DVR ED8432H5-D
32CH Digital Video Recorder ( DVR) ,Max. 40CH (Up to 32CH BNC/24CH IP),5MP Lite@10FPS, Bandwidth In /Out (Mb): 16Mb/40 Mb, HDMI/VGA/CVBS(or Spot), Audio/Alarm,4SATA,1ESATA.
Titanium ED-8432H5-D2 32CH UPTO 5MP Lite TVI/CVI/AHD High Definition DVR / H.265
Product Alias: DVR 32ch 5MP 2-SATA
product info data sheet
32CH Titanium 5MP Lite TVI/AHD/CVI High Definition DVR ED8432H5-D
32CH Digital Video Recorder ( DVR) ,Max. 40CH (Up to 32CH BNC/24CH IP),5MP Lite@10FPS, Bandwidth In /Out (Mb): 16Mb/40 Mb, HDMI/VGA/CVBS(or Spot), Audio/Alarm,4SATA,1ESATA.
SPECIFICATIONS
Downloads
Accessories
Configuration
Advanced Configuration
Features
- 32 CH TVI / AHD video input, support 5MP/ 4MP / 3MP / 1080P / 720P / WD1
- 32 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1
- 32 CH DVRs default support 8 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback: 16CH simultaneously playback
- Search: time slice, time, event ( manual, motion ), tag search
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse, and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ, and configuration
- Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with a mobile device
- Multi-user online simultaneously
- Authorization management, log review, and device status review
- Support 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smartphone & Pad surveillance with iOS and Andriod OS
New FW1.3.5: Titanium DVR New Firmware Downloads
This Digital Video Recorder works to with: Titanium HD Cameras
Data SheetWeight 12.257687 lbs Dimensions 6 ? 6 ? 6 in DVR 32ch 5MP 2-SATA
