$1,207.00

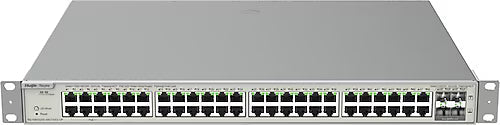

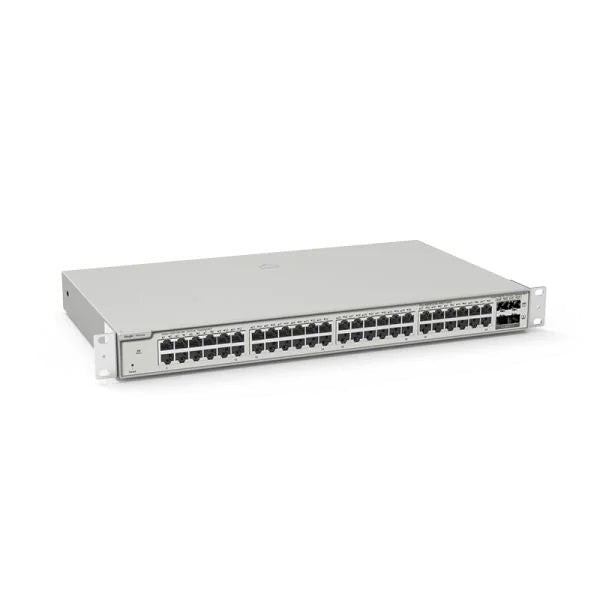

Ruijie Reyee RG-NBS5200-48GT4XS-UP 48-Port Gigabit Layer 3 PoE Switch with 4 SFP+ Uplinks
The Ruijie Reyee RG-NBS5200-48GT4XS-UP is built for networks that need high port density, strong PoE power, and enterprise-grade Layer 3 performance in one switch. With 48 Gigabit RJ45 ports, 4 x 10GE SFP+ uplinks, and a 740 W PoE budget, it gives buyers the flexibility to power cameras, access points, phones, and other devices while still keeping room for high-speed uplink expansion. For businesses that want a switch that can handle demanding surveillance, enterprise access, and managed network growth, this model is designed to keep the network stable, secure, and easier to manage over time.
It is especially attractive for buyers who want stronger uplink capacity, cloud management, and broad Layer 3 feature support without stepping into an overly complicated deployment.
Ideal Applications / Common Uses
- Large IP camera surveillance deployments
- Enterprise access layer switching
- PoE-powered wireless access point installations
- Office buildings, campuses, and branch networks
- Retail, hospitality, and education network infrastructure
- High-density device environments needing 10G uplinks
Key Features
- 48 Gigabit RJ45 ports - supports dense wired deployments from a single switch.
- 4 x 10GE SFP+ uplink ports - provides faster uplinks for aggregation and backbone connectivity.
- Layer 3 managed switching - adds routing intelligence for more advanced network segmentation and control.
- 740 W PoE budget - powers a large number of connected devices directly from the switch.
- Ports 1-8 support PoE/PoE+/PoE++ - gives extra flexibility for higher-power endpoints.
- 6 kV surge protection - helps reduce the risk of port damage in electrically challenging environments.
- Ruijie Cloud management - enables remote lifetime management from virtually anywhere.
- Enterprise-class security and Layer 3 features - supports more secure, scalable deployments.
Product Information
Model
RG-NBS5200-48GT4XS-UP
Product Category
Layer 3
Hardware Specifications - General
Warranty
5 years
Reset Button
1
DIP Switch
No
Module Slots
No
Port Specifications
Total Number of RJ45 Ports
48
Total Number of Optical Ports
4
Number of 1GE Combo Ports
No
Number of 1GE SFP Ports
No
Number of 10GE SFP+ Ports
4
Number of 10/100BASE-T Ports
No
Number of 10/100/1000BASE-T Ports
48
Number of 10/100/1000/2500BASE-T Ports
No
Number of 100/1000/2.5G/5G/10GBASE-T Ports
No
Power Supply and PoE
PoE Out Standard
Ports 1-8: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt); Ports 9-48: PoE/PoE+ (IEEE 802.3af/at)
Number of PoE Out Ports
48
Number of PoE/PoE+ Out Ports
48
Number of PoE/PoE+/PoE++ Out Ports
8
PoE Budget
740 W
PoE Power Pins
Ports 1-8: 1-2(-), 3-6(+), 4-5(+), 7-8(-); Ports 9-48: 1-2 (+), 3-6 (-)
Power Input
220 V AC power supply: Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 10 A
Maximum Power Consumption
75.6 W (with no PoE load); 815.6 W (with full PoE load)
Power Output
No
Power Supply
Fixed power supply
System Specifications
RAM
512 MB
Flash Memory
256 MB
Forwarding Rate
132 Mpps
Switching Capacity
176 Gbps(bit/s)
Dimensions and Weight
Casing
Metal
Product Dimensions (W x D x H)
440 mm x 357.6 mm x 43.6 mm (17.32 in. x 14.08 in. x 1.72 in.)
Weight
5.64 kg (12.43 lbs) (without packaging materials)
Shipping Weight
7.15 kg (15.76 lbs)
Environment and Reliability
Hot Swapping of Fan Modules
No
Fan
3 x fixed fans
Cooling
Air cooling, side-to-rear airflow
Acoustic Noise
25°C (77°F): 60 dB
Mounting Options
Rack
Hot Swapping of Cables
Service ports support hot swapping of cables.
MTBF
400,000 hours
Operating Temperature
0°C to +50°C (32°F to 122°F)
Storage Temperature
-40°C to +70°C (-40°F to +158°F)
Operating Humidity
10% RH to 90% RH (non-condensing)
Storage Humidity
5% RH to 95% RH (non-condensing)
Altitude
Operating altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.); Storage altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.)
Corrosion Class
No
ESD Protection
Contact discharge: 6 kV; Air discharge: 8 kV
Surge Protection
Service port: ±6 kV for common mode; Power connector: ±6 kV for both common mode and differential mode
Certification and Regulatory Compliance
EMC
EN 55032; EN 61000-3-2; EN 61000-3-3; EN 55035; EN 300 386
Safety Compliance
IEC 62368-1
Certification
CE, FCC
Software Specifications - Authentication
RADIUS
Yes
802.1X Authentication
Yes
Port-Based 802.1X Authentication
Yes
MAC Address-Based 802.1X Authentication
Yes
Guest VLAN
Yes
Software Specifications - Basic Configurations
PoE Watchdog
Yes
Online Upgrade
Yes
Software Specifications - Ethernet Switching
Maximum Number of VLANs
4094
Maximum Number of MAC Address Entries
16000
Interface Flow Control
Yes
MAC Address-Based VLAN
No
IP Subnet-Based VLAN Assignment
No
IEEE 802.1Q VLAN
Yes
Basic QinQ
No
VLAN Configuration Supported on LAN Ports
Yes
Voice VLAN
Yes
STP (IEEE 802.1d)
Yes
RSTP (IEEE 802.1w)
Yes
MSTP (IEEE 802.1s)
Yes
LLDP
Yes
LLDP-MED
Yes
Static MAC Address
Yes
MAC Address Filtering
Yes
Static Aggregation
Yes
LACP
Yes
Inbound or Outbound Rate Limiting Based on Interface Traffic
Yes
Software Specifications - Gateway Features
802.1p Priority-Based Traffic Classification
Yes
DSCP Priority-Based Traffic Classification
Yes
Egress Queues Based on 802.1p and DSCP Priorities
Yes
SP
Yes
WRR
Yes
SP+WRR
Yes
Global QoS
Yes
Software Specifications - Interface
Jumbo Frame Length (MTU)
9216 bytes (interface configuration mode)
EEE
Yes
Cable Test
Yes
Software Specifications - IP Routing
Maximum Number of IPv4 Static Routes
500
IPv6 Routing Table Size (Network Route)
500
Maximum Number of IPv6 Static Routes
500
IPv4 Static Route
Yes
IPv6 Static Route
Yes
OSPFv2
Yes
OSPFv3
Yes
Software Specifications - IP Service
Maximum Number of ARP Entries
2000
IPv4 Routing Table Size (Host Route)
12000
ARP
Yes
IPv4 Ping
Yes
IPv4 Traceroute
Yes
IPv6
Yes
ICMPv6
Yes
IPv6 Ping
Yes
IPv6 Traceroute
Yes
DNS Client
Yes
DNSv6 Client
Yes
DHCP Relay
Yes
DHCP Server
Yes
DHCP Client
Yes
Software Specifications - Multicast
IGMPv1 Snooping
Yes
IGMPv2 Snooping
Yes
Basic IGMPv3 Snooping
Yes
Full IGMPv3 Snooping
Yes
IGMP Filtering
Yes
IGMPv1, v2, and v3
Yes
Software Specifications - Network Management and Monitoring
Port Mirroring
Yes
Mirroring
Yes
HTTP Login
Yes
HTTPS Login
Yes
RLOG
Yes
SON
Yes
Syslog
Yes
Client Auto-Discovery
Yes
PoE Service Failure
Yes
PoE Power Overload
Yes
SSH
No
Camera Detection
Yes
Loop Alarm
Yes
MAC Address Entries
Yes
IP Address Pool Conflicts
Yes
Full ARP Table
Yes
eWeb Management
Yes
Ruijie Cloud Management
Yes
Ruijie Reyee App Management
Yes
SNMPv1, v2c, and v3
Yes
Software Specifications - Reliability
Number of VCS Members
2
System Dual Backup
Yes (Only supported on devices with a factory-installed software version of ReyeeOS 2.320 or later)
Enabling Dual Backup for the Partition Uboot (based on a single flash memory)
Yes
Load Balancing
No
ERPS
Yes: Stand-alone No: Hot standby
Software Specifications - Security
Maximum Number of ACEs
Number of ACEs in the inbound direction of an interface: 1900; Number of ACEs in the outbound direction of an interface: 0
Port Isolation
Yes
Broadcast Storm Control
Yes
Multicast Storm Control
Yes
Unknown Unicast Storm Control
Yes
DHCP Snooping
Yes
Standard ACL
Yes
Extended MAC ACL
Yes
Extended IP ACL
Yes
IPv6 ACL
Yes
IP-MAC-Port Binding
Yes
ARP Anti-Spoofing
Yes
IP Source Guard
Yes
CPU Protection Policy
Yes
System Performance Capacity
Recommended Camera Limit
200 W H265: 400; 400 W H265: 200
Accessories Found / Package Contents
Device
Device - 1
Rubber Pad
4
Power Cord Retention Clip
1
Screw
8 M4 x 8 mm cross recessed countersunk head screws
Grounding Cable
1 x 1 m (3.28 ft.)
Power Cord
1 x 1.5 m (4.92 ft.)
Rack-Mount Bracket
2
User Manual
1
Warranty Card
1
